MAD M7C15 IPE Manned drone motor

$205.00

The M7C15 is designed to carry a payload of 4-6kg, supports 12S voltage for heavy hexacopter, octocopter, firefighter drone and tethered drone.

Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M7C15 IPE Manned drone motor

MAD M7C15 IPE Manned drone motor

The M7C15 is designed to carry a payload of 4-6kg, supports 12S voltage for heavy hexacopter, octocopter, firefighter drone and tethered drone.

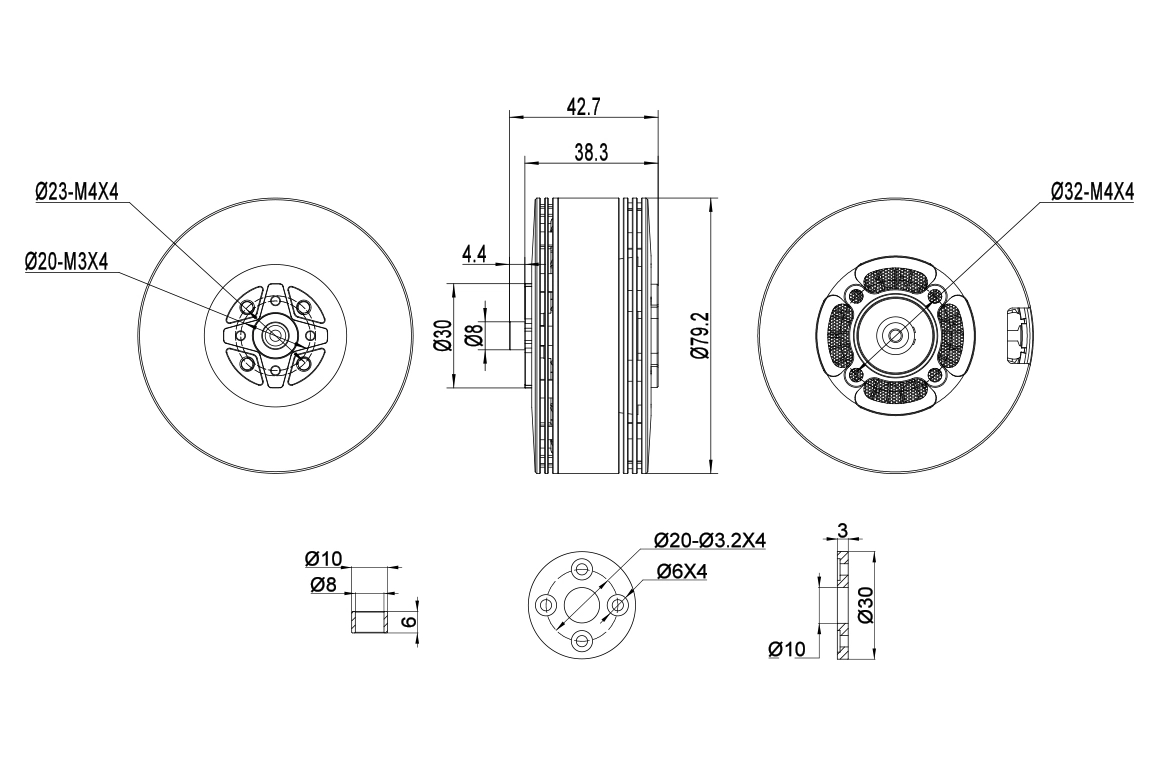

Motor ModelMAD M7C15 IPE V2.0Number of pole pairs14
StatorAnticorrosiveVarnished wire Degree180°C
Motor SizeD:79.2 × 42.7 mmMotor Balance150°C
Degree of ProtectionIP45Cable Length150 mm 14# Awg(Black) silicone
Centrifugal Heat DissipationYESRotor Balance≤5 mg
Propeller Mounting HolesD:20 M3×8,  D:23 M4×4Motor Balance≤10 mg
Shaft DiameterIN: 8 mmMotor Mounting HolesD:32 M4×4
Bearing688ZZ *2Disruptive test500 V

Additional information
Weight N/A
Dimensions N/A

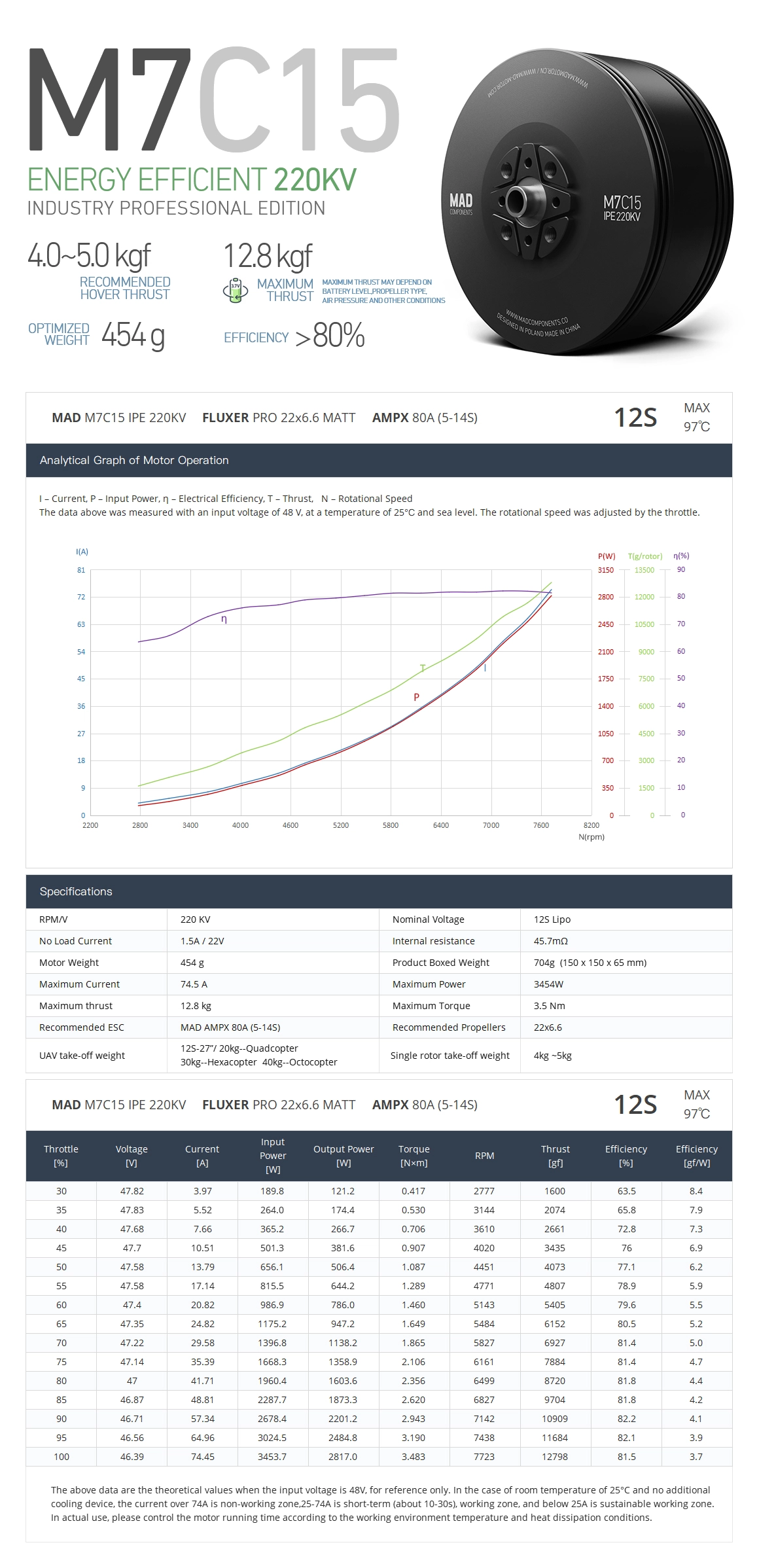

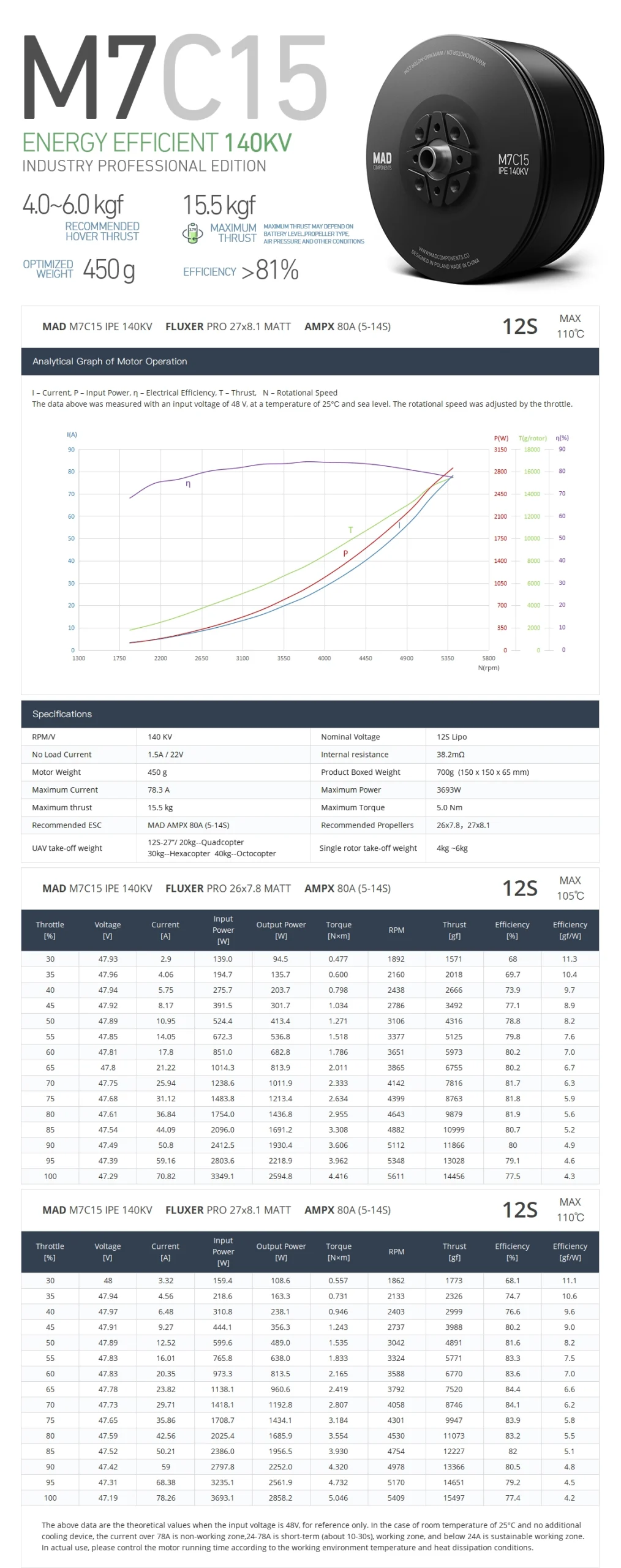

KV 140KV , 220KV
