MAD M7C15 IPE Manned drone motor $205.00
Back to products
MAD M50C35 PRO EEE Manned Drone motor $1,199.00

MAD M30 Pro IPE brushless drone motor

$689.00

Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M30 Pro IPE brushless drone motor

MAD M30 Pro IPE brushless drone motor

1.12S Voltage
2. Recommend: continue thrust:12-15kgf
3.ESCAMPX ESC 200a 5-14s ,AMPX ESC 300a (5-14s)
4.Propeller: 40×13.1 inch carbon fiber prop,fluxer vtol 40.1×16 inch propeller

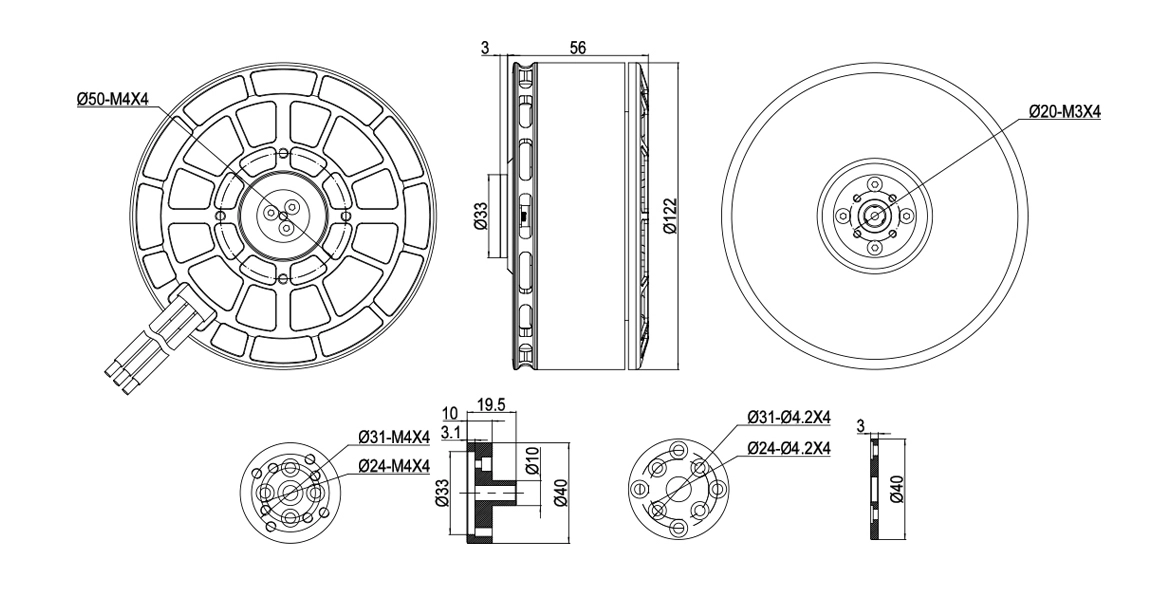

Motor Data

Motor ModelMAD M30 IPE PRO V1.0Number of pole pairs15
StatorAnticorrosiveVarnished wire Degree220°C
Motor SizeD:122 × 59 mmMotor Balance180°C
Degree of ProtectionIP35Cable Length150 mm (extended Enameled wires）
Centrifugal Heat DissipationYESRotor Balance≤10 mg
Propeller Mounting HolesD:31 M4.2×4   D:24 M4.2×4Motor Balance≤20 mg
Shaft DiameterIN: 15 mmMotor Mounting HolesD:50 M4×4
BearingHR30202J / 3202A-2RZTNDisruptive test500 V
Additional information
Weight N/A
Dimensions N/A
KV 80KV , 100KV
