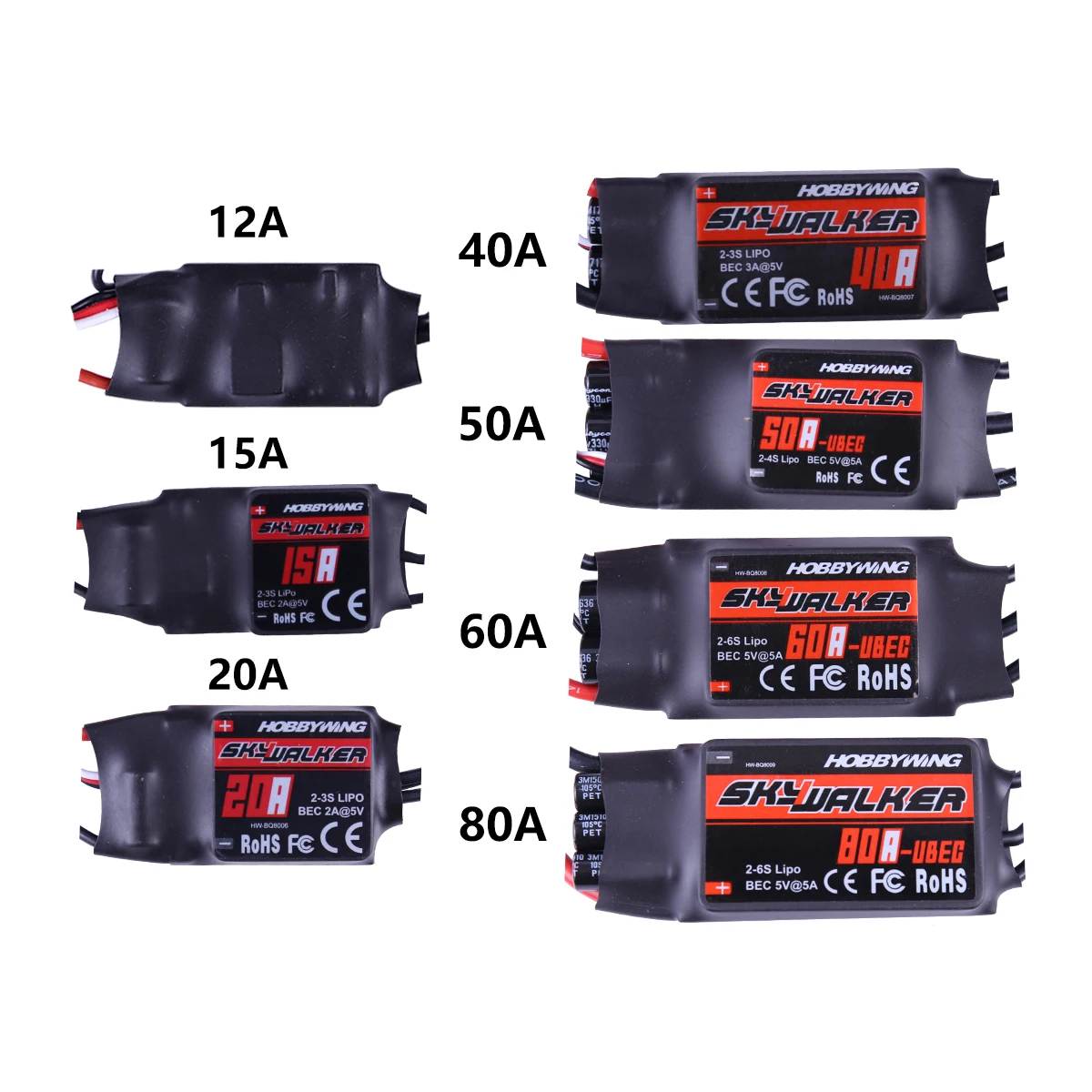

Original Hobbywing SKYWALKER Series 2-6S 12A 20A 30A 40A 50A 60A 80A Brushless ESC Speed Controller With UBEC For RC Quadcopter
Original Hobbywing SKYWALKER Series 2-6S 12A 20A 30A 40A 50A 60A 80A Brushless ESC Speed Controller With UBEC For RC Quadcopter

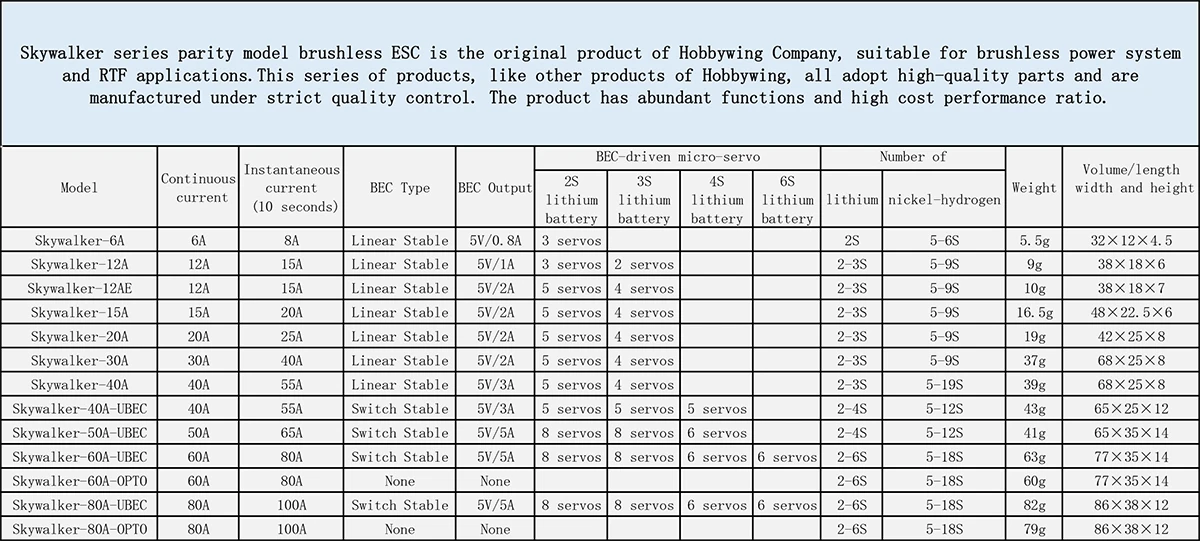

Product Function Introduction:

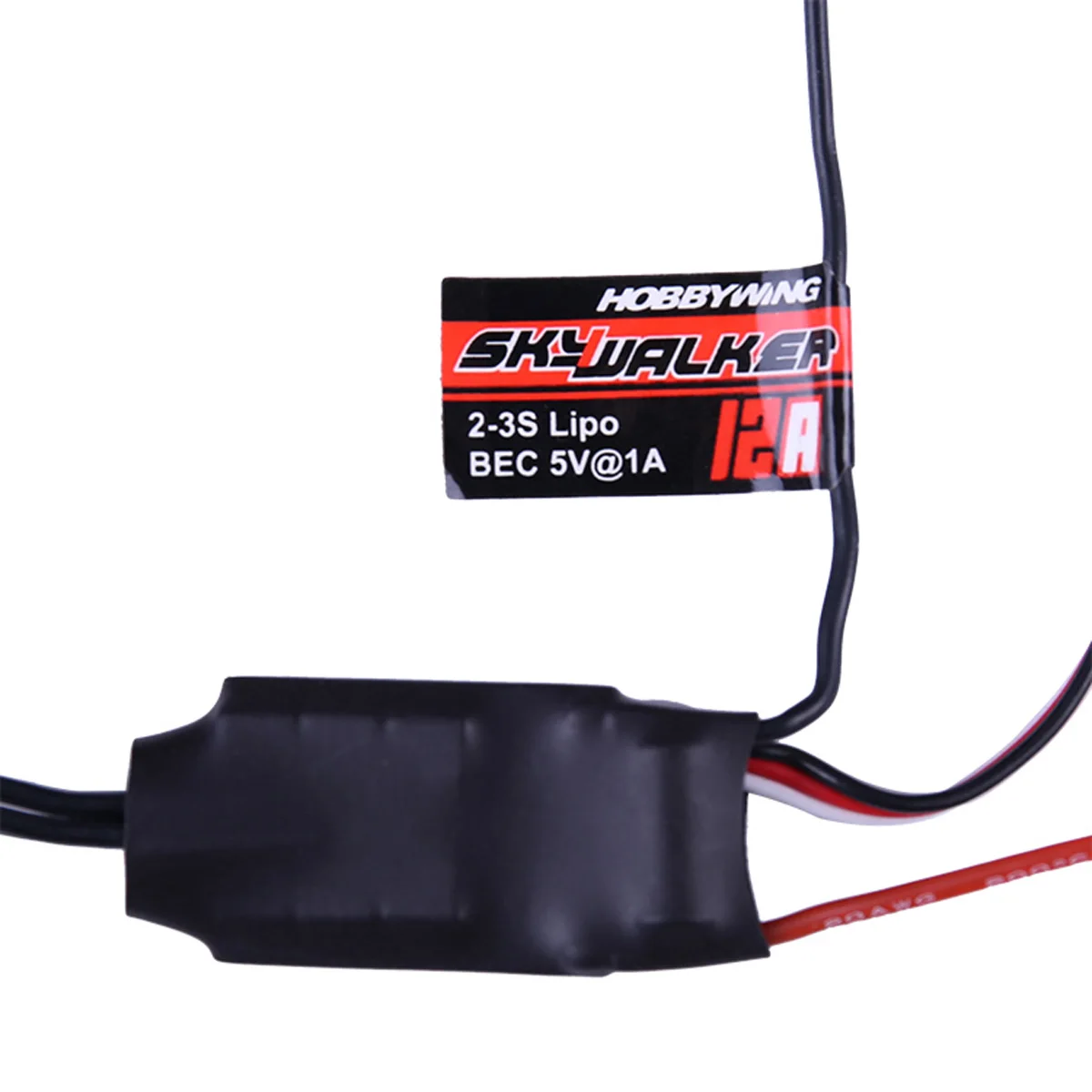

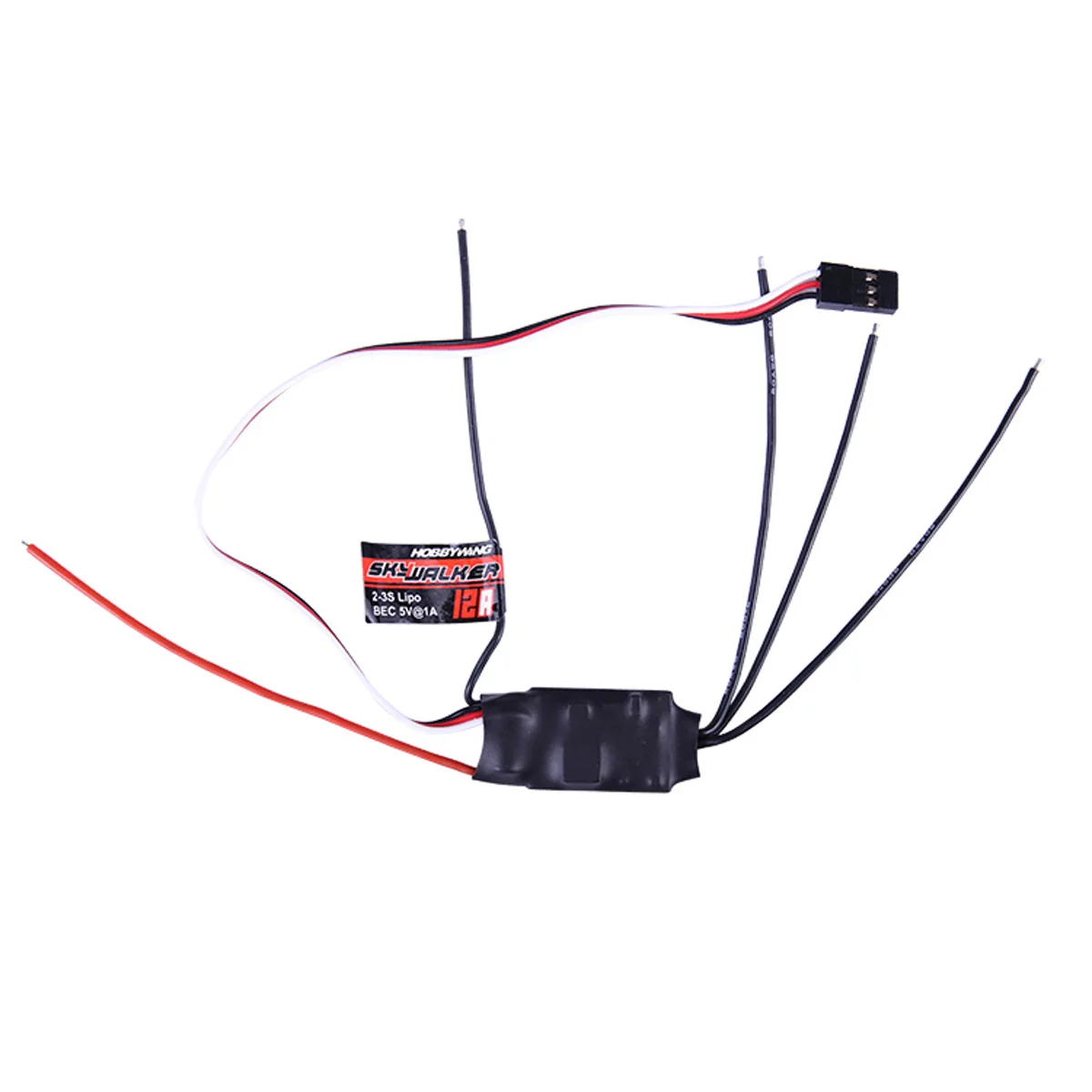

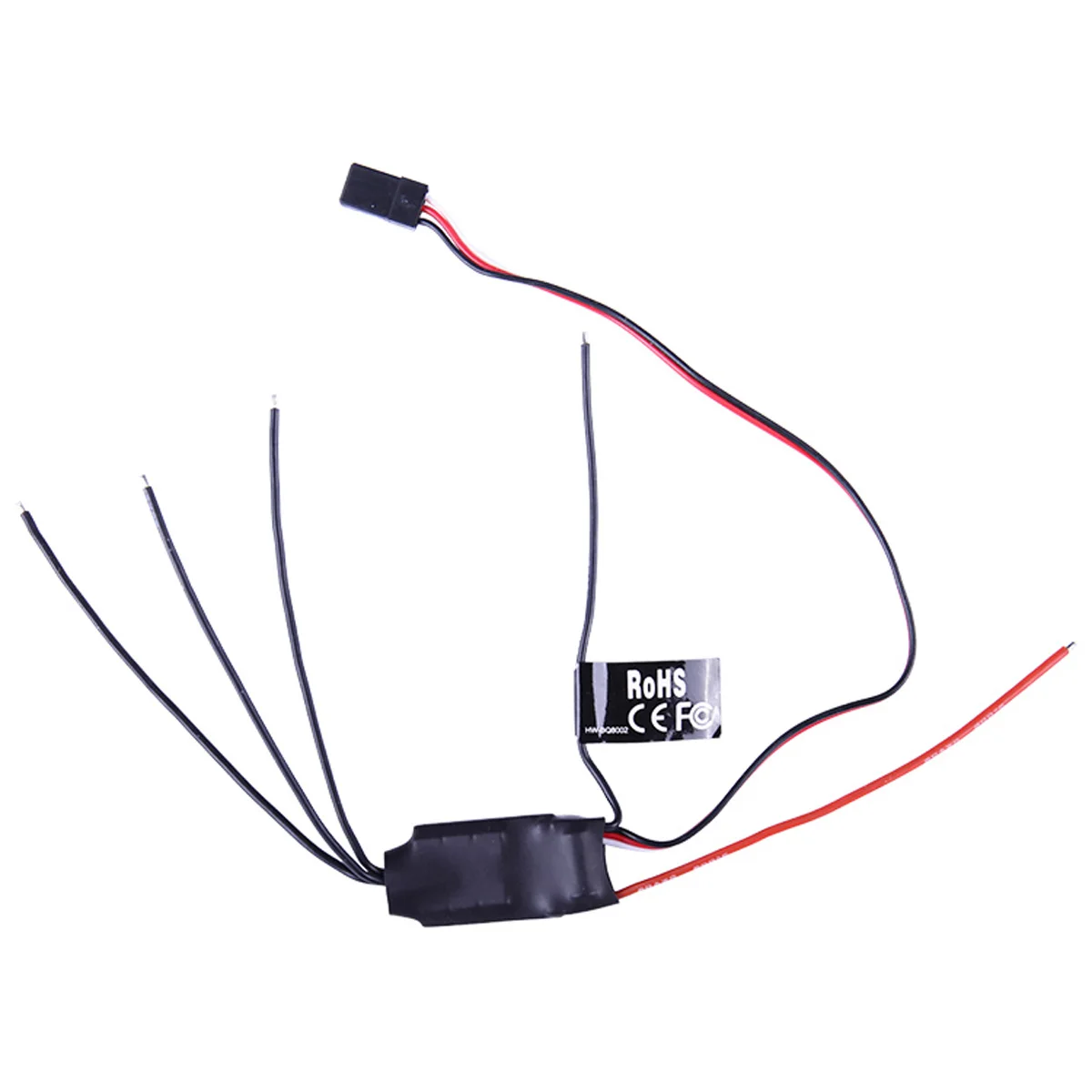

Skywalker 12A：
Parameters: (without banana plug)
1. Output capacity: continuous current 12a, short-time current 15A (not less than 10 seconds);
2. Power input: 2 lithium batteries or 5-6 nickel hydrogen / nickel cadmium batteries;
3. BEC output: 5V@1A (linear mode);
4. Speed: 210000 rpm for 2-pole motor, 70000 rpm for 6-pole motor, 35000 rpm for 12 pole motor;
5. Size: 38mm*18mm*7mm

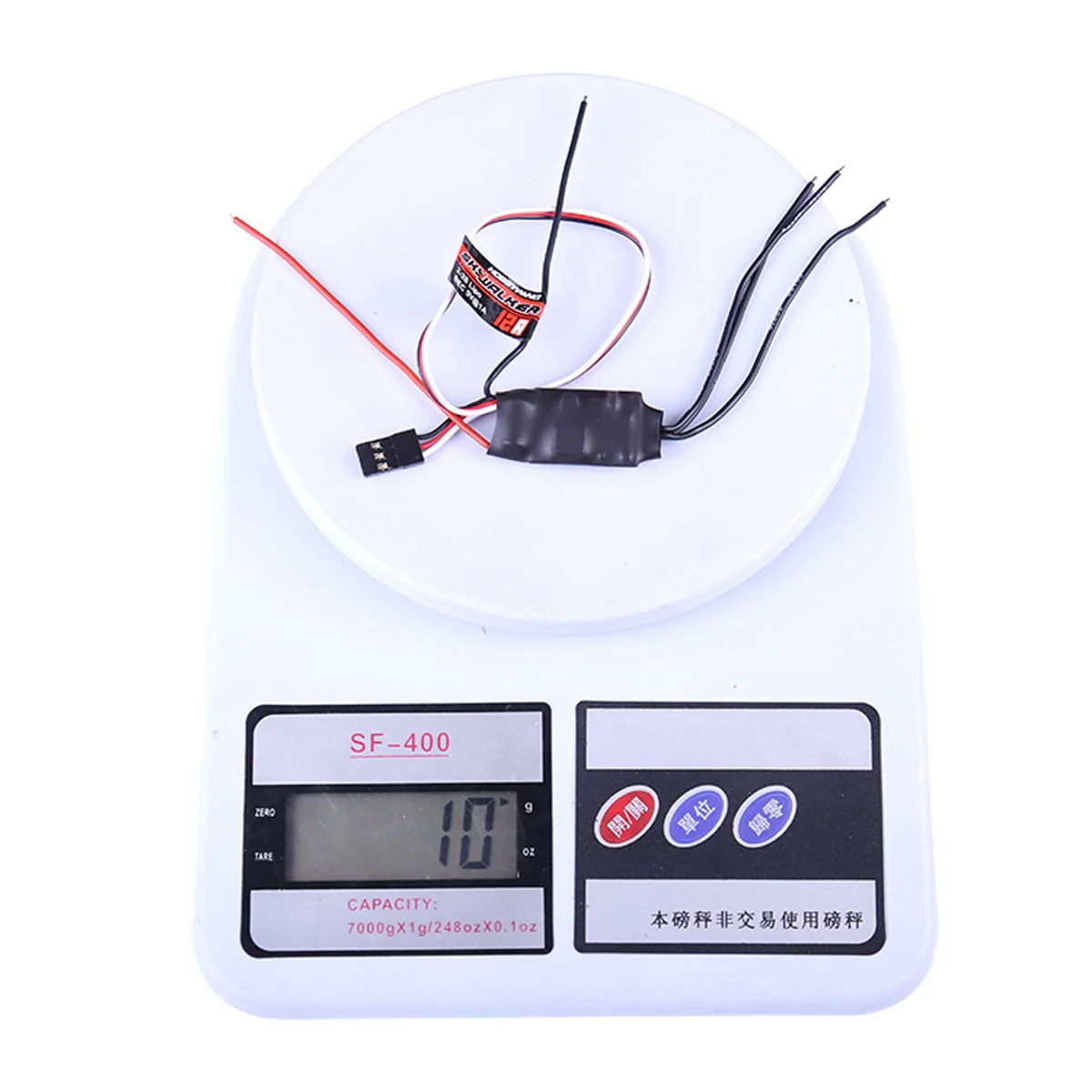

6. Weight: 10g;

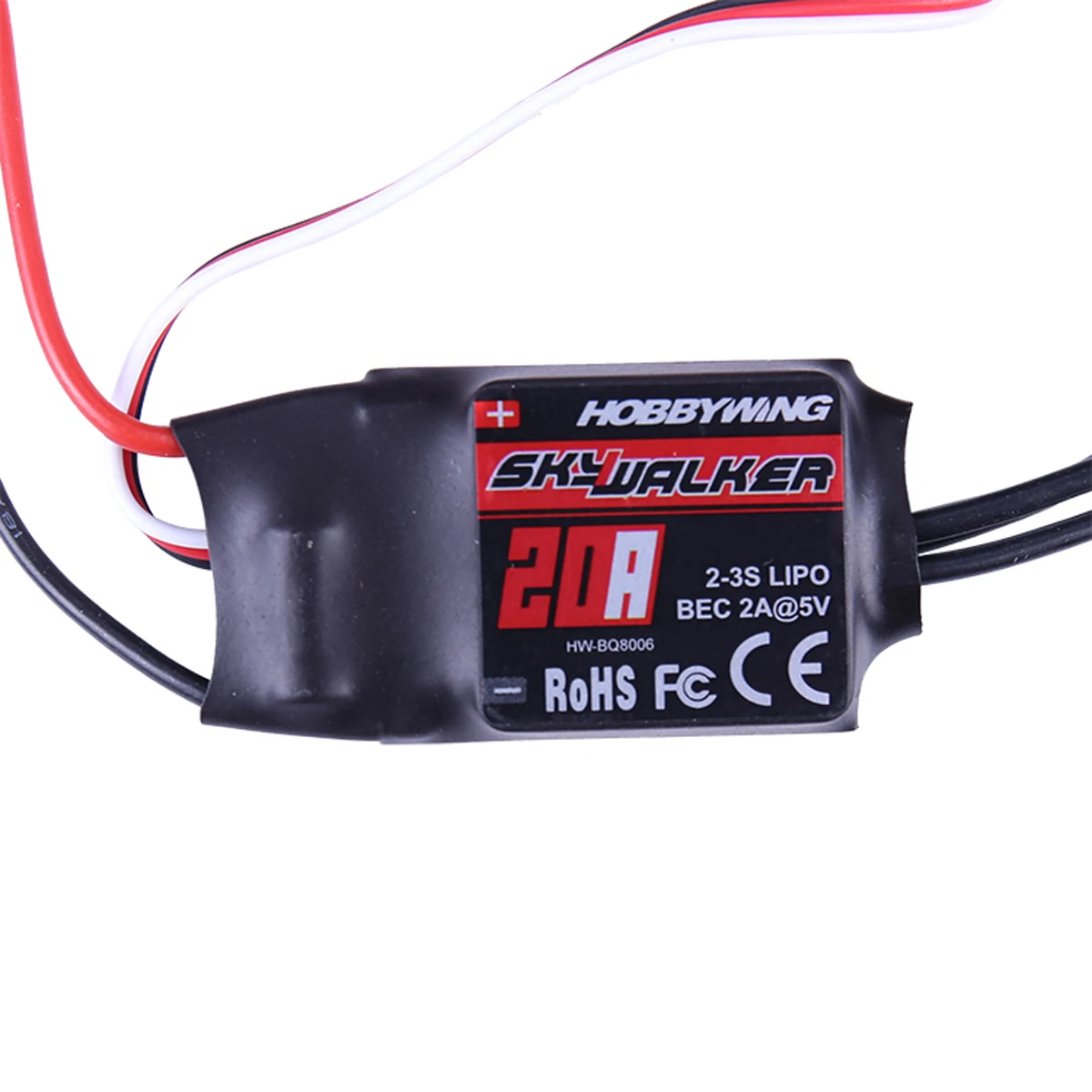

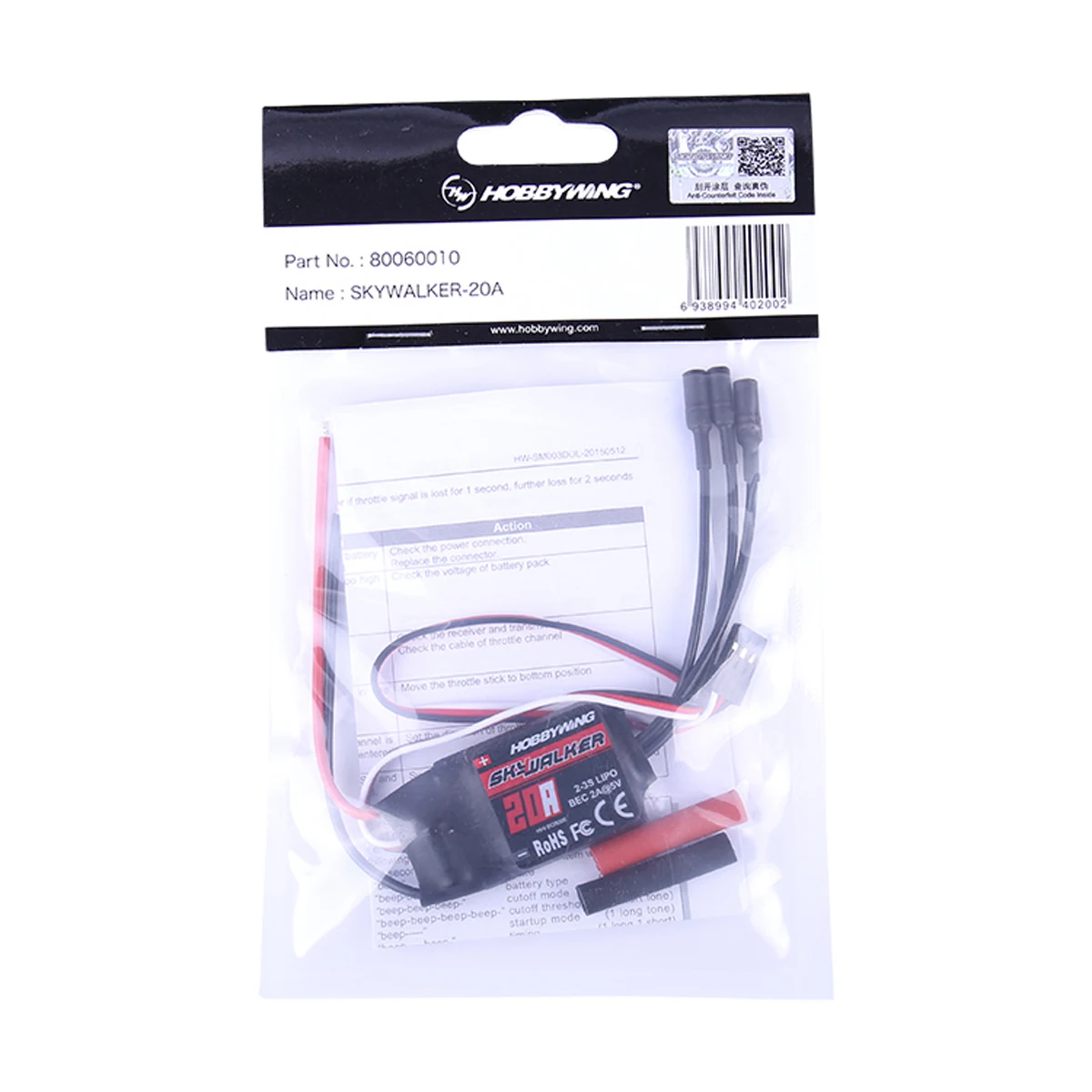

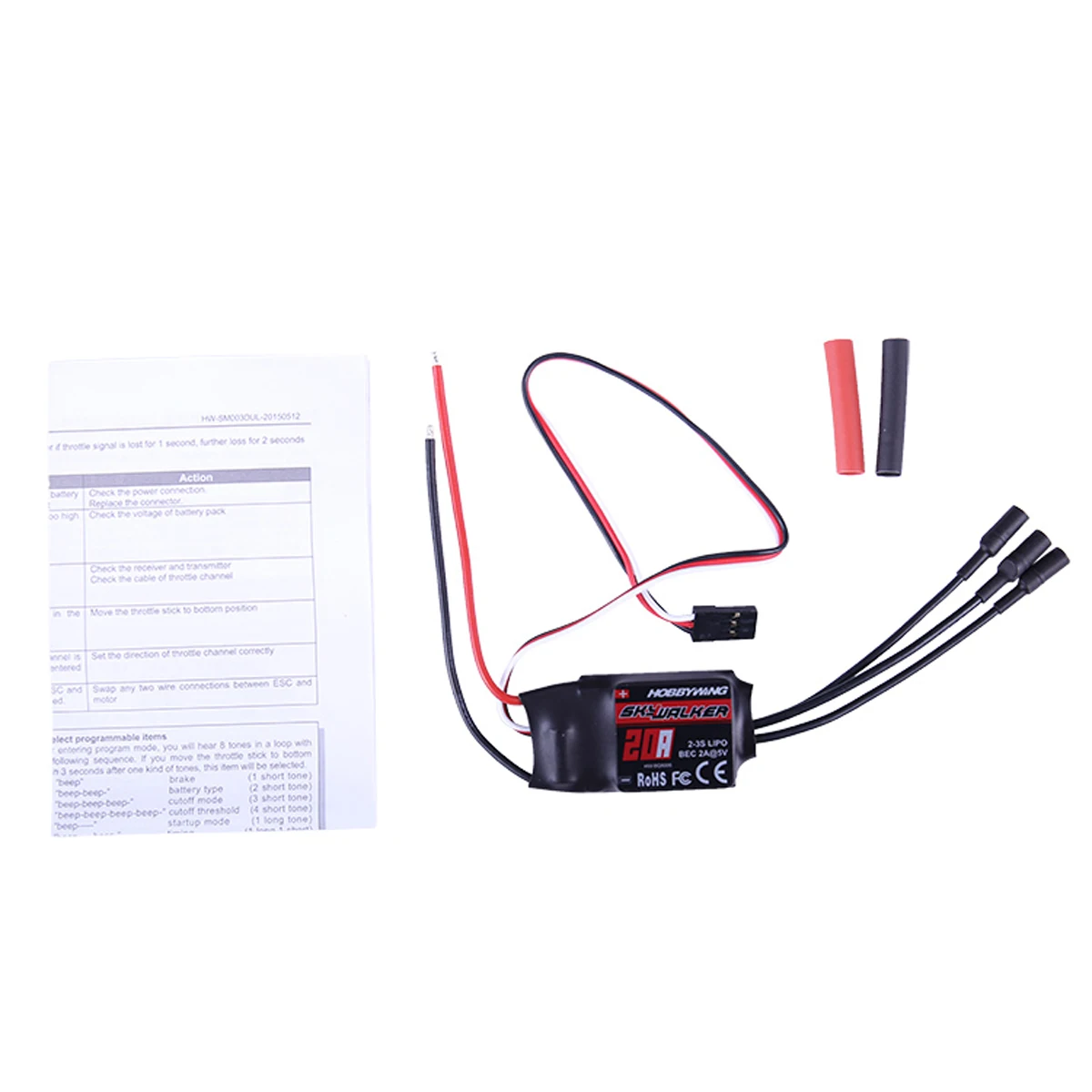

Skywalker 20A
Parameters: (with 3.5 banana plug)
1. Output capacity: continuous current 20a, short-time current 25A (not less than 10 seconds);
2. Power input: 2-3 lithium batteries or 5-9 nickel hydrogen / nickel cadmium batteries;
3. BEC output: 5V@2A (linear mode);
4. Speed: 210000 rpm for 2-pole motor, 70000 rpm for 6-pole motor, 35000 rpm for 12 pole motor;
5. Size: 42mm*25mm*8mm
6. Weight: 24g (including heat sink) ;
Skywalker 30A
Parameters: (with 3.5 banana plug)
Continuous Current: 30A
Burst Current (>10s): 40A
BEC Mode: linear mode
BEC Output: 5V/2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Size:: 68 x 25 x 8mm
Weight:37g (including heat sink) ;

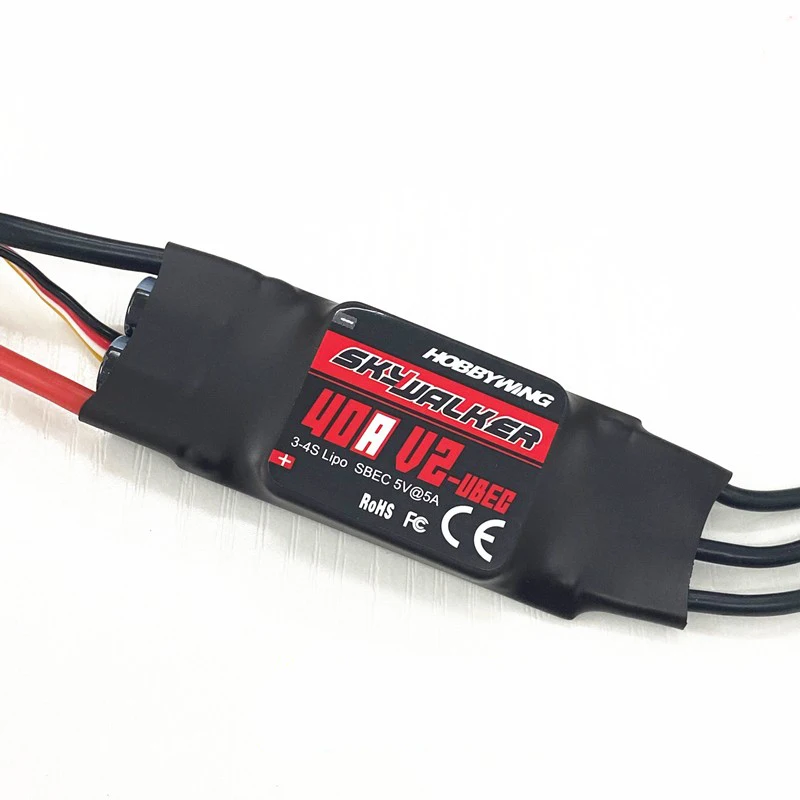

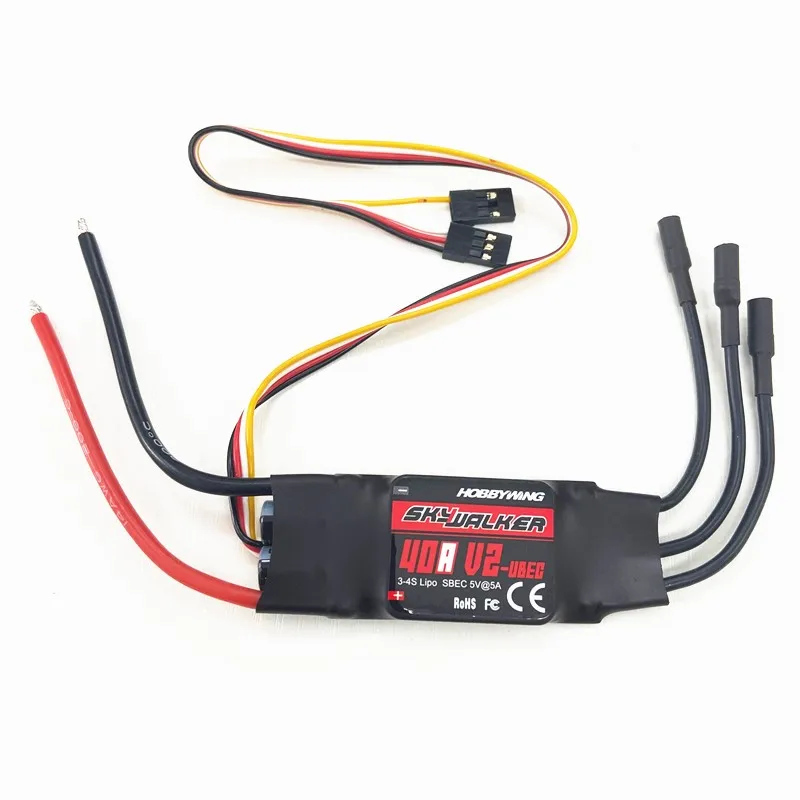

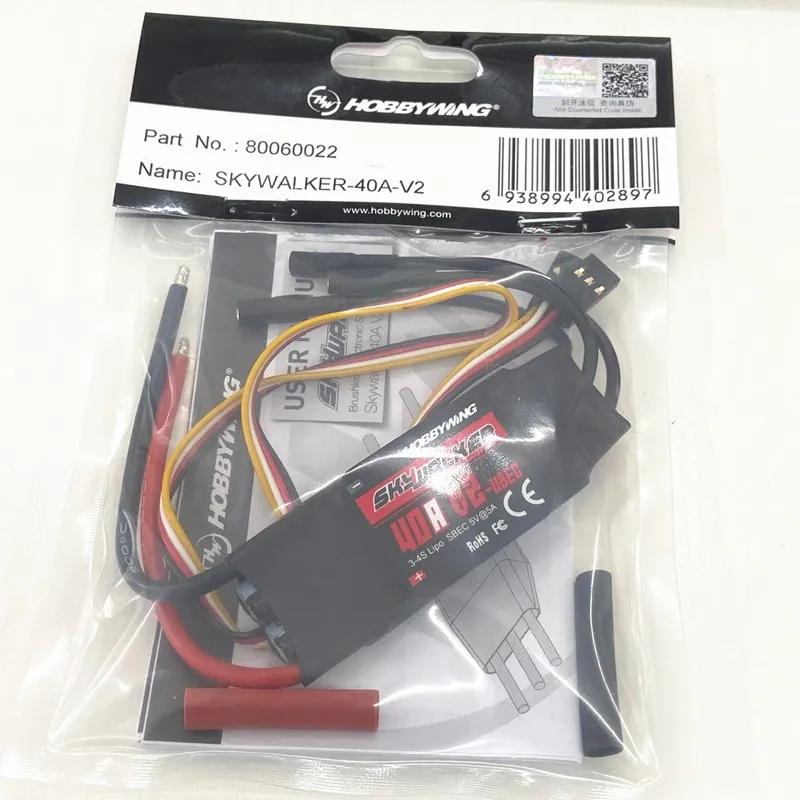

Skywalker 40A Â V2
Parameters: (with 3.5 banana plug)
Continuous Current: 40A V2
Burst Current (>10s): 55A
BEC Mode: linear mode
BEC Output: 5V3A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Size:: 68 x 25 x 8mm
Weight:41g

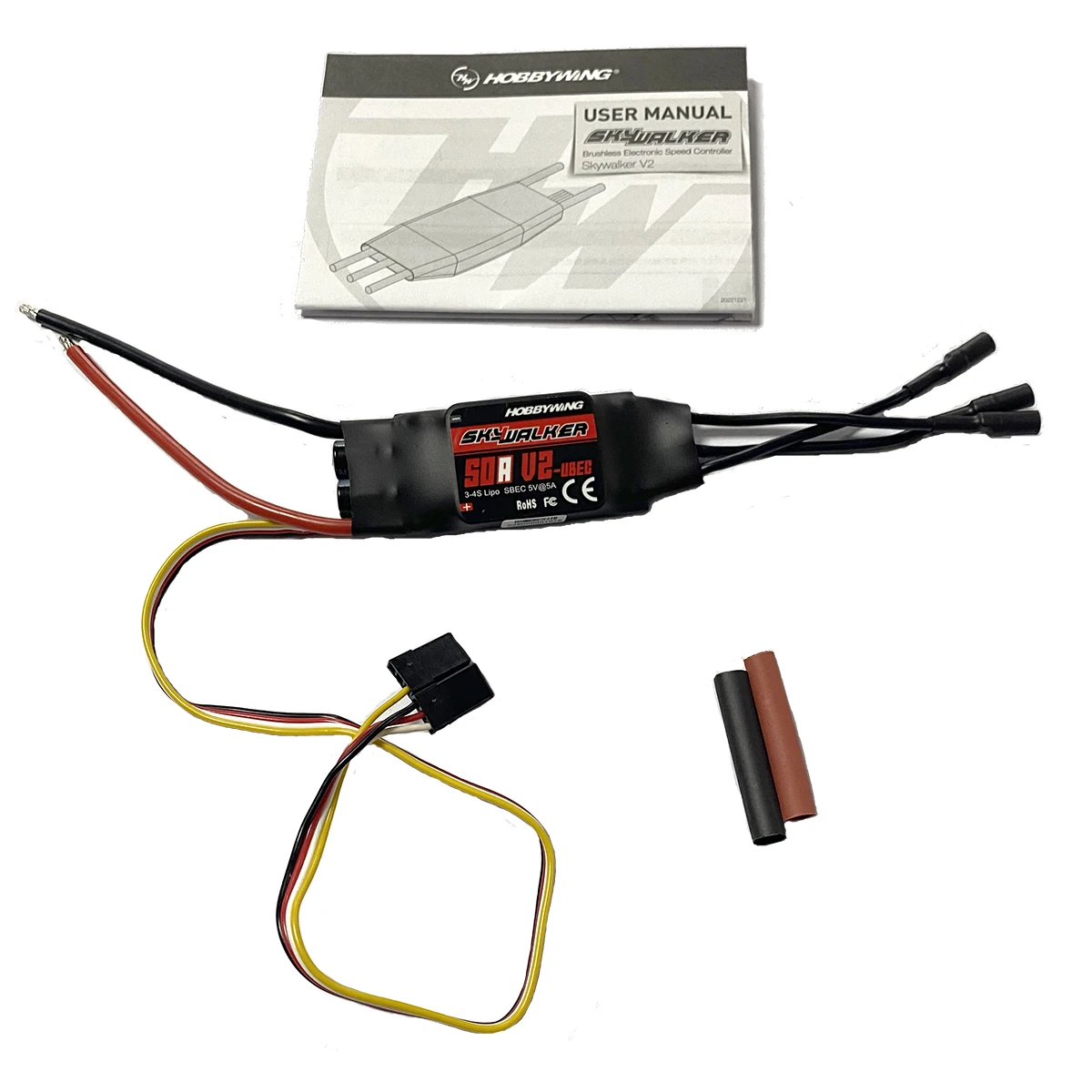

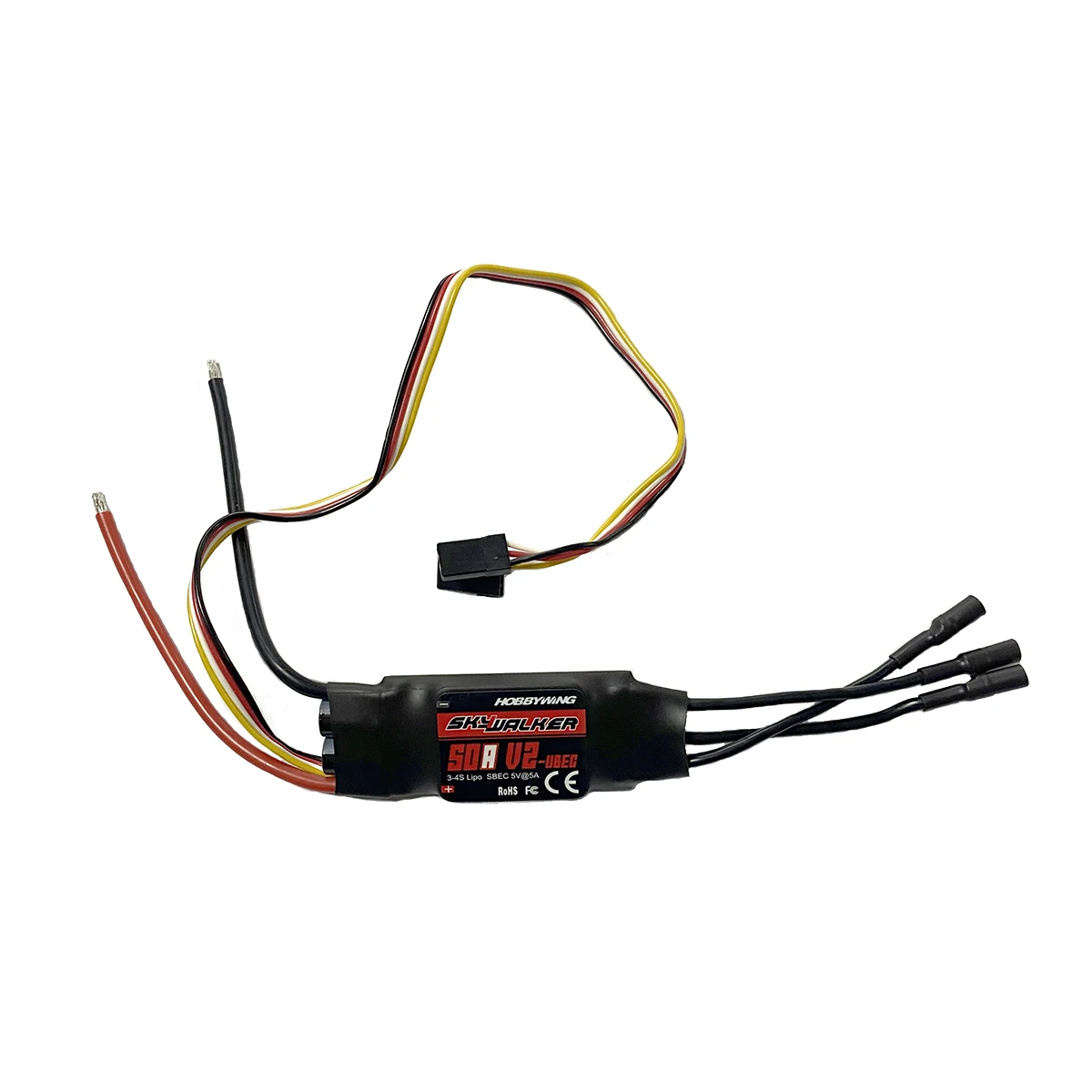

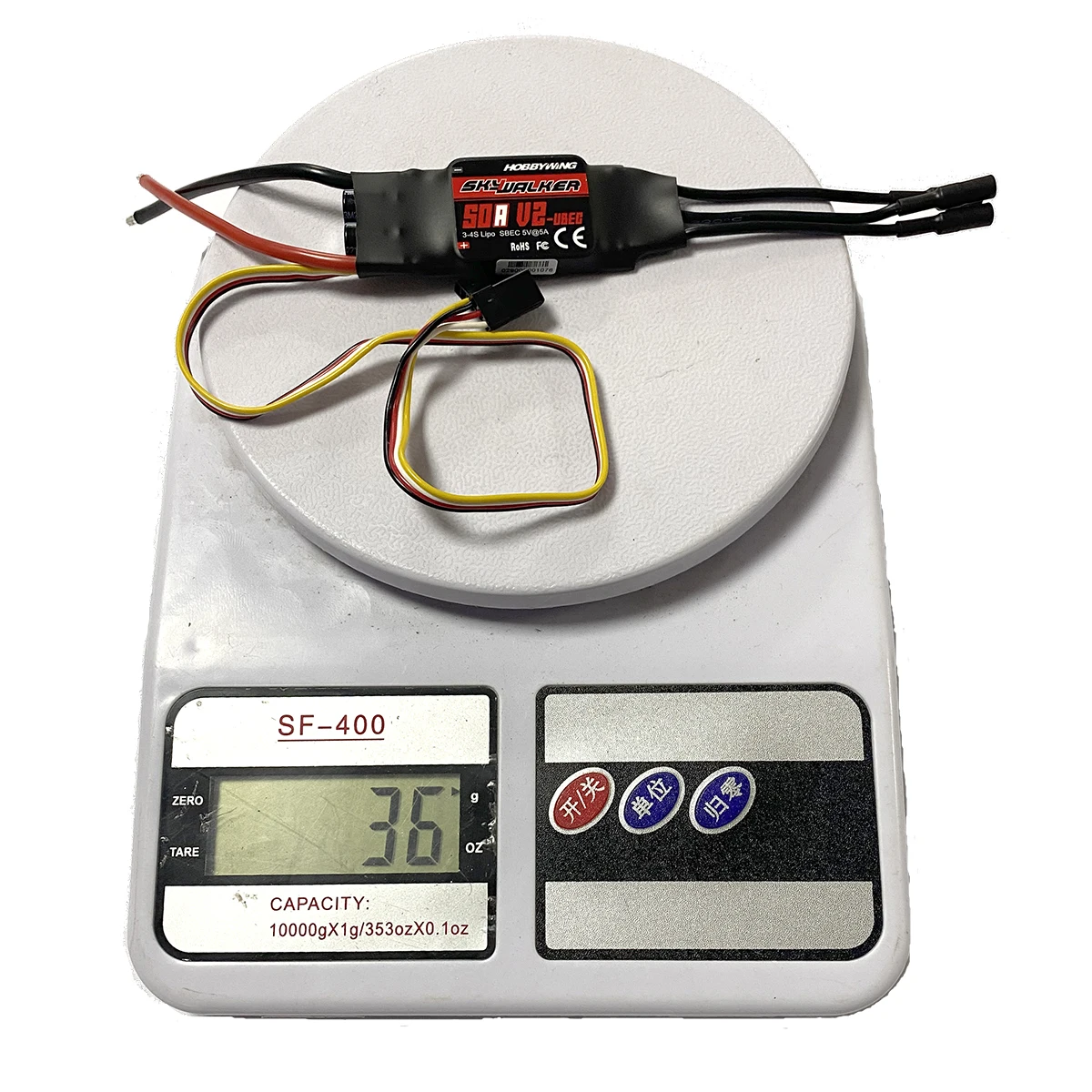

Skywalker 50A V2
Parameters: (with 3.5 banana plug)
1. Output capacity: continuous current 50a, short-time current 65A (not less than 10 seconds);
2. Power input: 2-4 lithium batteries
3. BEC output: 5V@5A (Switch Stable);
4.Refresh rate：50Hz-432Hz；
5. Speed: 210000 rpm for 2-pole motor, 70000 rpm for 6-pole motor, 35000 rpm for 12 pole motor;
5. Size: 65mm*25mm*12mm
6. Weight: 42g (including heat sink) ;

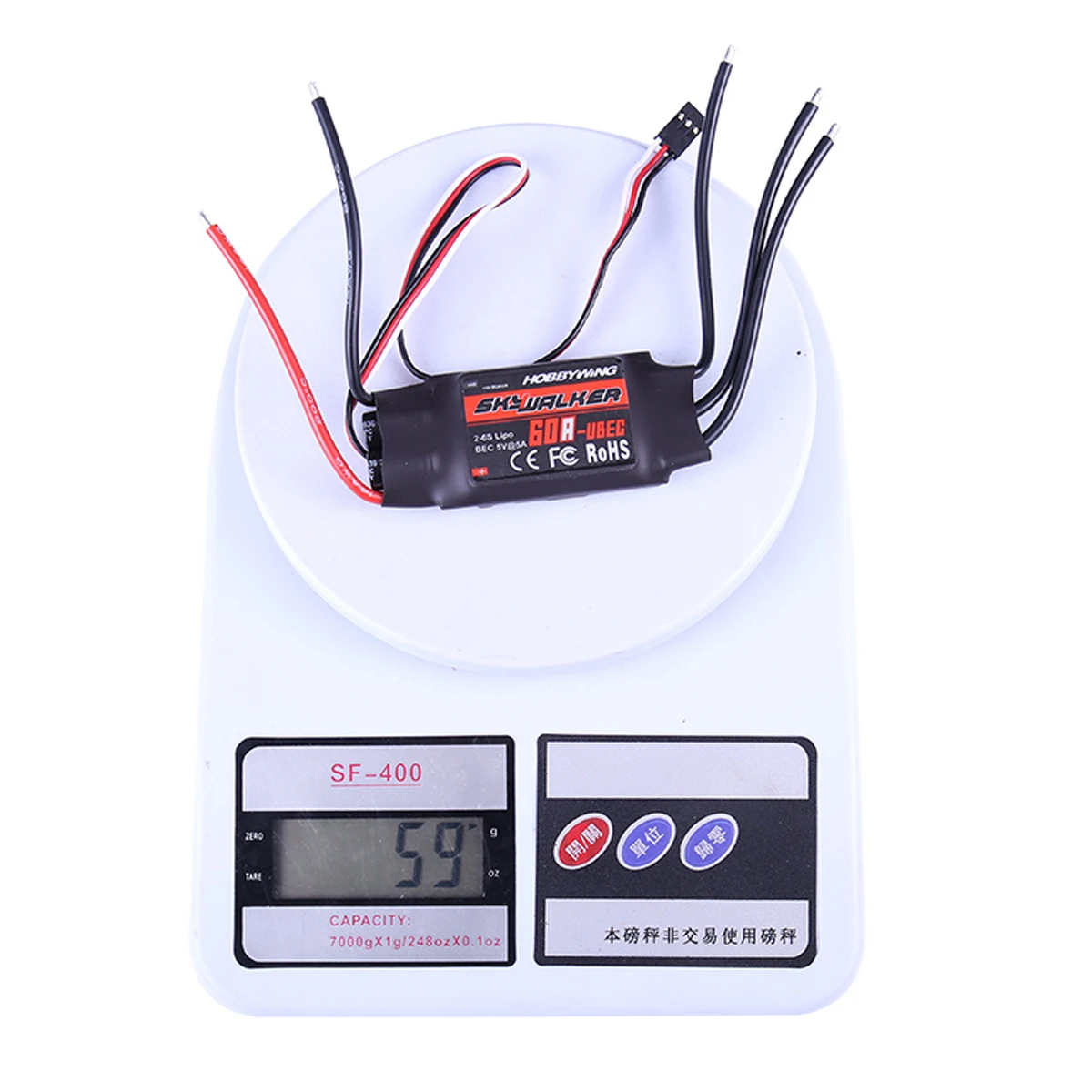

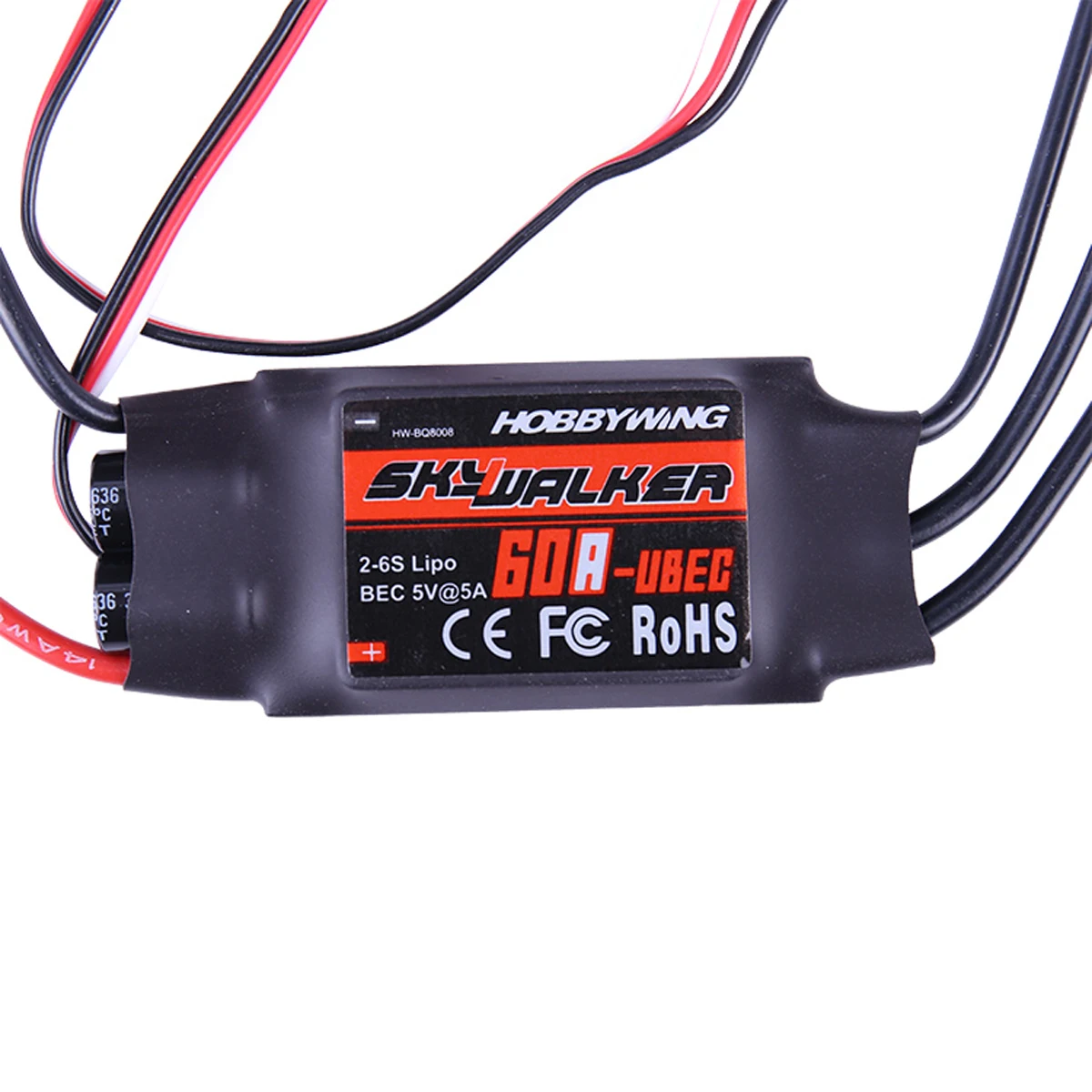

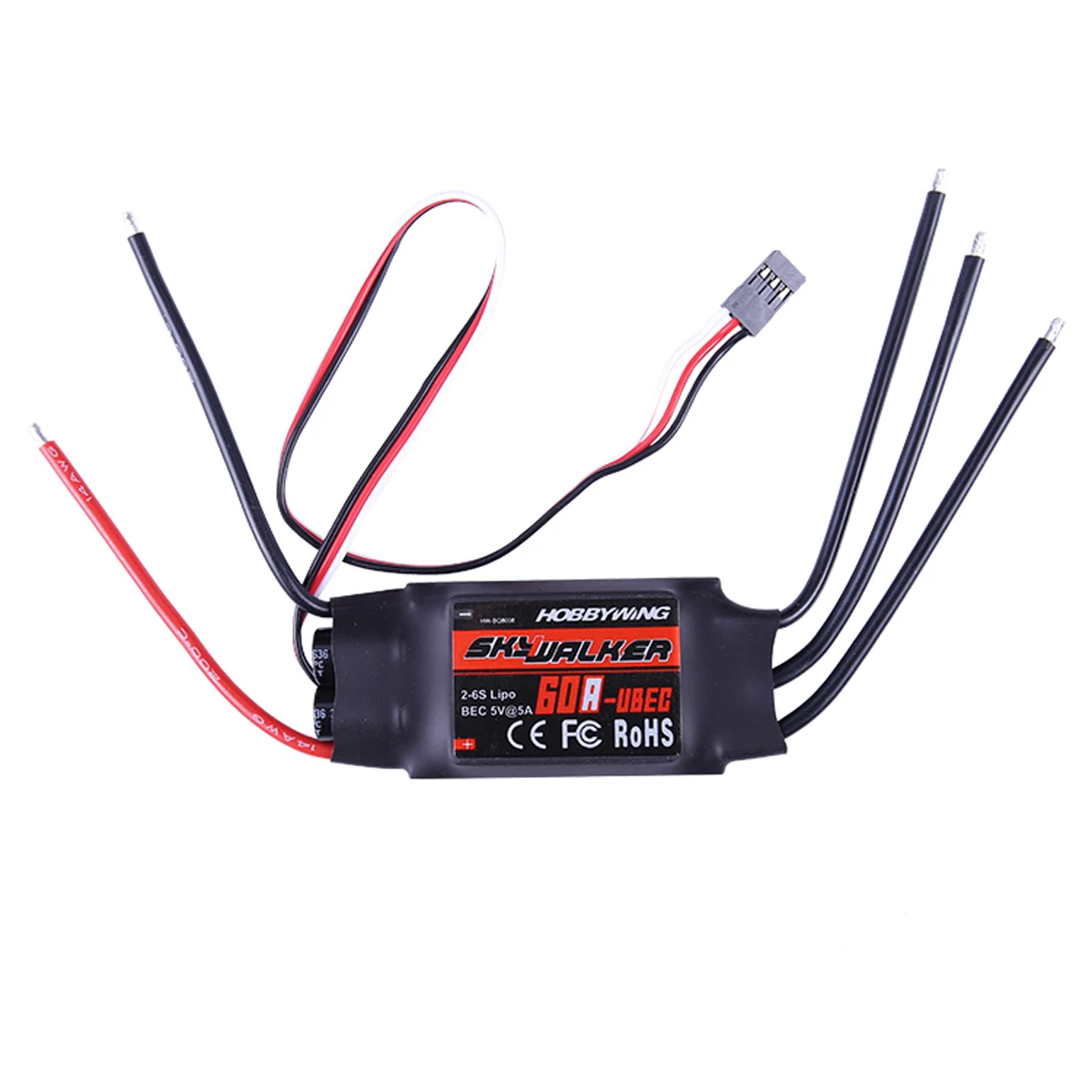

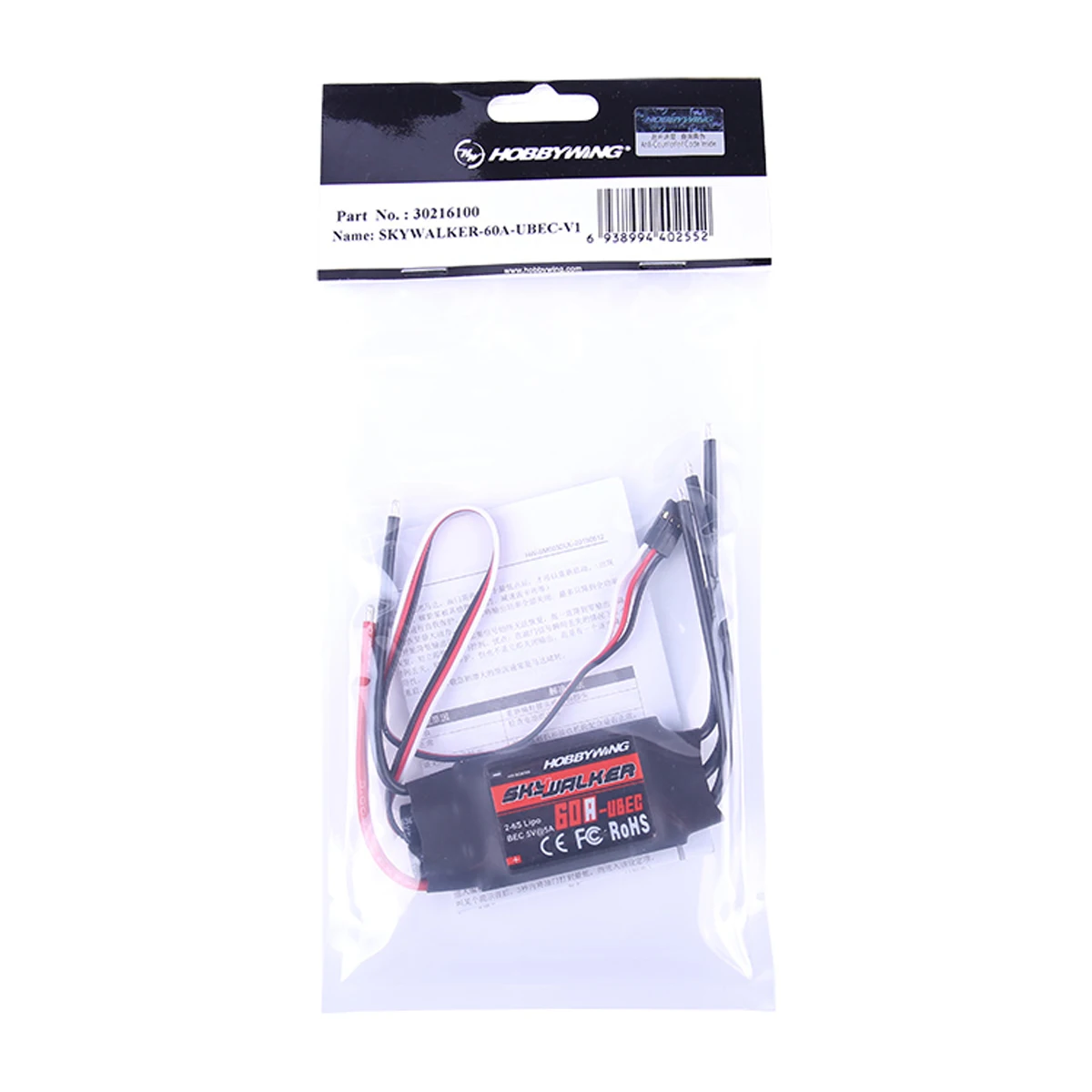

Skywalker 60A
Parameters: (without banana plug)
1. Output capacity: continuous current 60a, short-time current 80A (not less than 10 seconds);
2. Power input: 2-6 lithium batteries or 5-118 nickel hydrogen / nickel cadmium batteries;
3. BEC output: 5V@5A (Switch Stable);
4.Refresh rate：50Hz-432Hz；
5. Speed: 210000 rpm for 2-pole motor, 70000 rpm for 6-pole motor, 35000 rpm for 12 pole motor;
5. Size: 77mm*35mm*14mm
6. Weight: 59g (including heat sink) ;

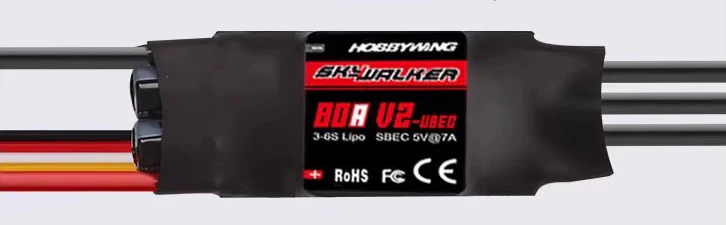

Skywalker 80A V2
- Product Name: SkyWalker 80A V2-UBEC
- Type: Brushless ESC,Regular voltage
- Cont./Peak Current: 80A/100A
- Input: 3-6S LiPo
- BEC Output: Switch Mode:5V,7A
- Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1
- Output Wires: Black-14AWG-100mm*3
- Input Connectors: NO
- Output Connectors: 4.0 Gold Connectors (Female)
- ESC Programing via: Transmitter, LED Program Box ,Program Port ( Program Wire Firmware )
- Firmware Upgrade: Not Supported
- Size: 85x36x9mm
Weight: 79g
