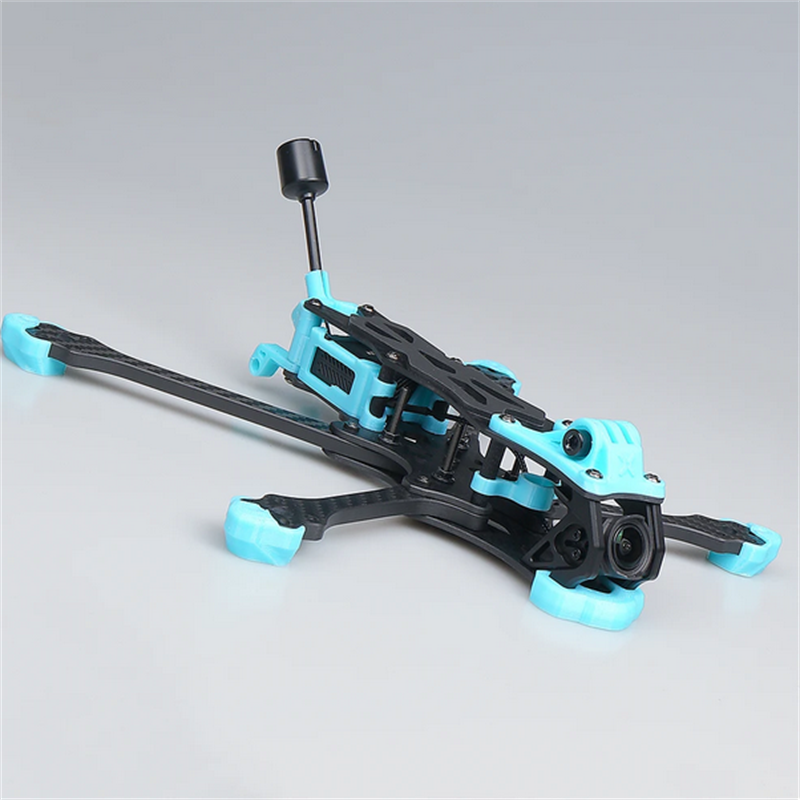

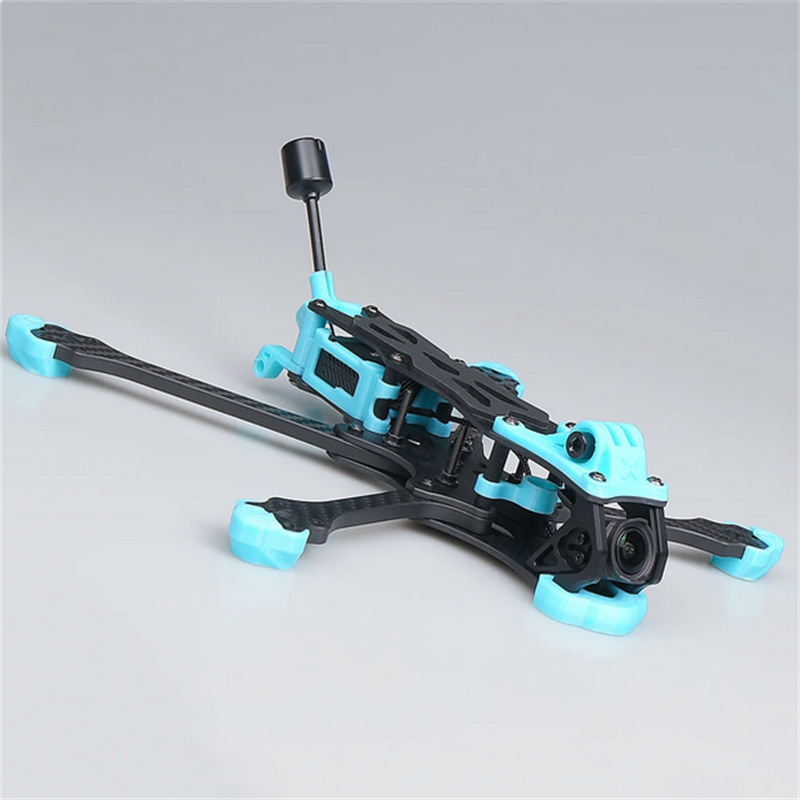

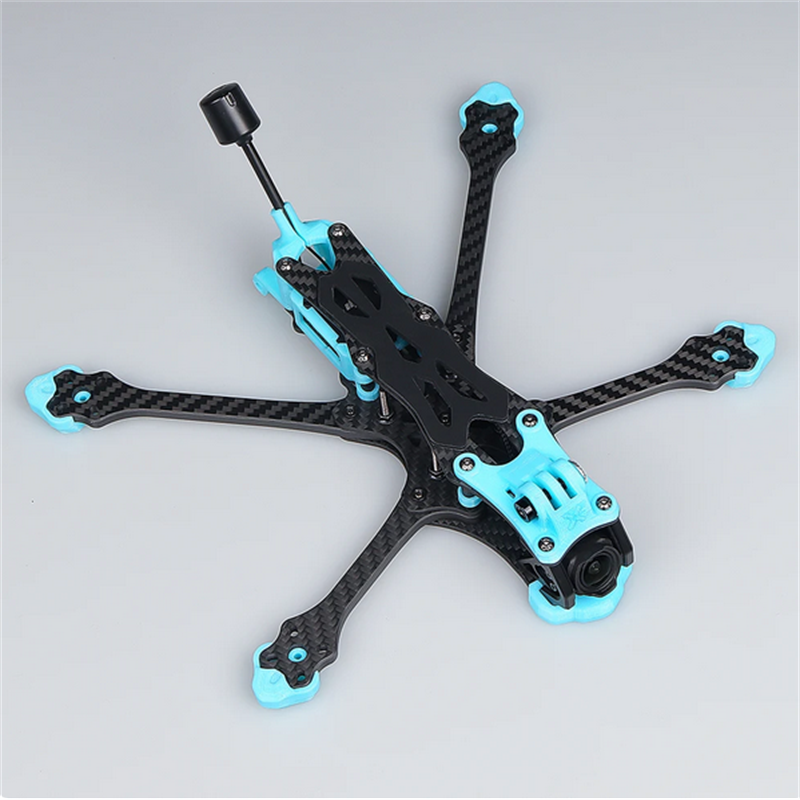

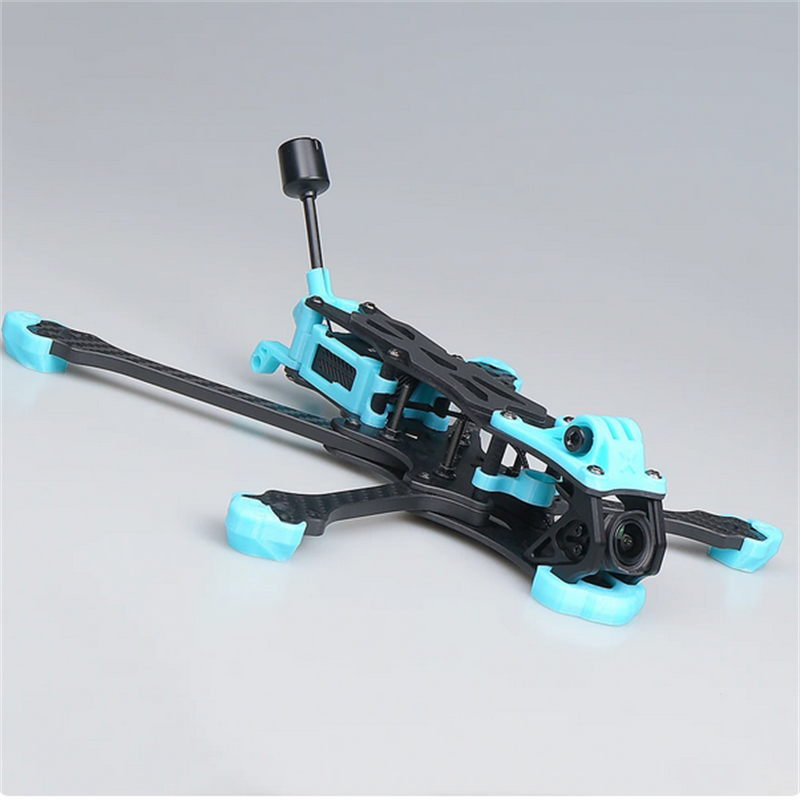

FOXEER MEGA 5″ 238mm / 6″ 269mm DC Frame T700 Carbon with Silky Coating for O3 / Analog / Vista / HDzero / Walksnail RC Drone
FOXEER MEGA 5″ 238mm / 6″ 269mm DC Frame T700 Carbon with Silky Coating for O3 / Analog / Vista / HDzero / Walksnail RC Drone
| Material | Toray T700 carbong |
| Wheelbase | 5″: 238mm; 6″: 269mm |
| Middle Mouting Hole | 30.5×30.5mm |
Rear Mouting Hole | 20×20/25.5*25.5/30.5×30.5mm |
| Camera Size | 19×19/20x20mm |
| Supported System | O3/Analog/Vista/Walksnail/HDZero |
| Weight | 5″: 136g; 6″: 152g (Excluded TPU) |
| Packing List | |
| 5mm Arm 16~19mm mounting – 4 | |
| 2mm Top Plate – 1 | |
| 2.5mm Middle Plate – 1 | |
| Balance Pole for 6″ – 2 | |
| 2.5mm Bottom Plate – 1 | |
| CNC Side Plate – 2 | |
| Aluminum Column M3*Φ5.5*23 – 6 | |
| SMA Antenna Mount – 1 | |
| Bottom Plate Front Protective Mount – 1 | |
| M5 Gopro Mount – 1 | |
| Arm Guard – 4 | |
| 915 Rx Antenna Mount – 1 | |
| Isolation Column – 2 | |
| Capacity Supporter – 1 | |
| 5″: DJI O3 VTx Mount – 1; 6″: DJI O3 VTx Mount with GPS – 1 | |
| UFL Antenna Mount – 1 | |
Cam Spacer – 2 | |
| M5 Nut – 1 | |
| M5*20 Screw – 1 | |
Battery Anti-slip Mat -1 | |
| 250*20mm Strap – 1 | |
220*20mm Strap – 1 |
