throwing fire extinguisher ball drone automatic thrower Fire Extinguisher Ball Release and Drop Device For Fire Fighting

throwing fire extinguisher ball drone automatic thrower Fire Extinguisher Ball Release and Drop Device For Fire Fighting

throwing fire extinguisher ball  is an activation or trigger strip is embedded into the ball’s outer casing, which securely holds the dry fire extinguishing agent inside. When the activator or trigger is exposed to flames for more than a few seconds, the casing will burst open and disperse a cloud of chemical powder in the immediate vicinity. It releases a blanket of CO2 gas that keeps air from the fire. A dry-powder extinguisher (2) contains sodium bicarbonate, which smothers a fire. A soda-acid extinguisher (3) contains sodium carbonate and a flask of acid. If the flask is broken, a chemical reaction releases a stream of frothy water.

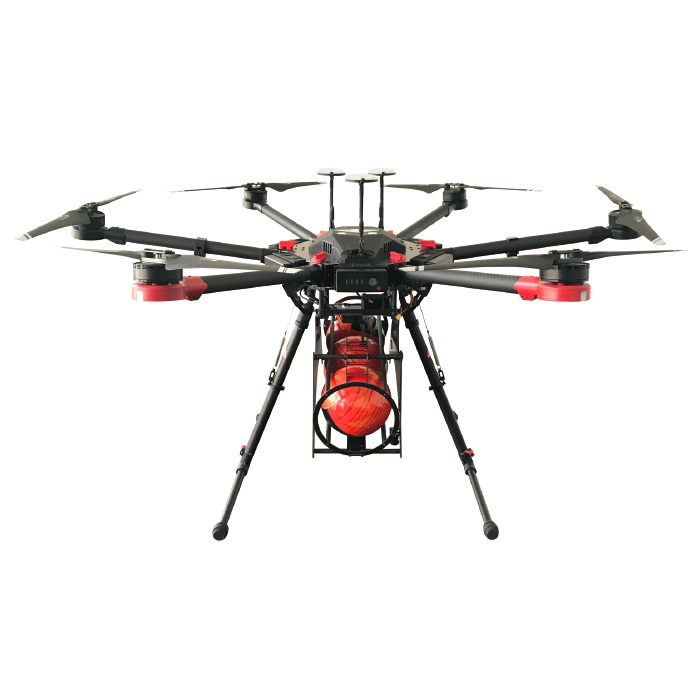

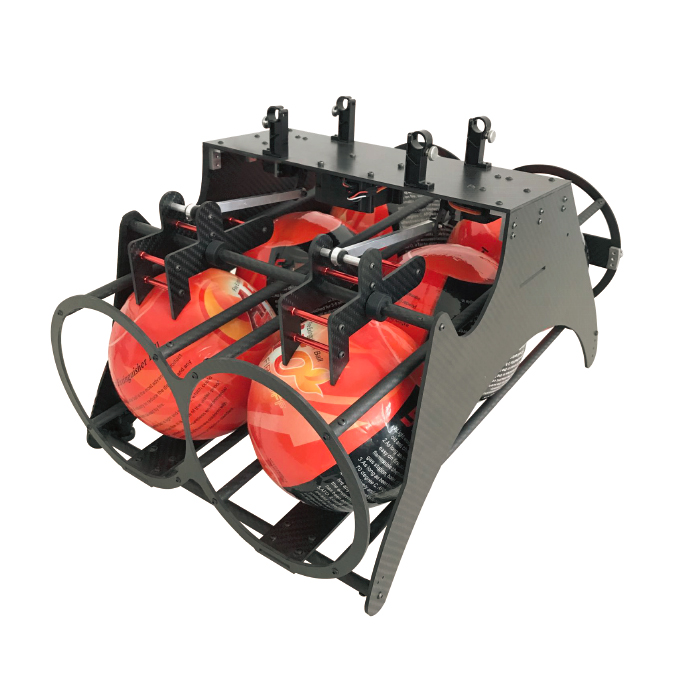

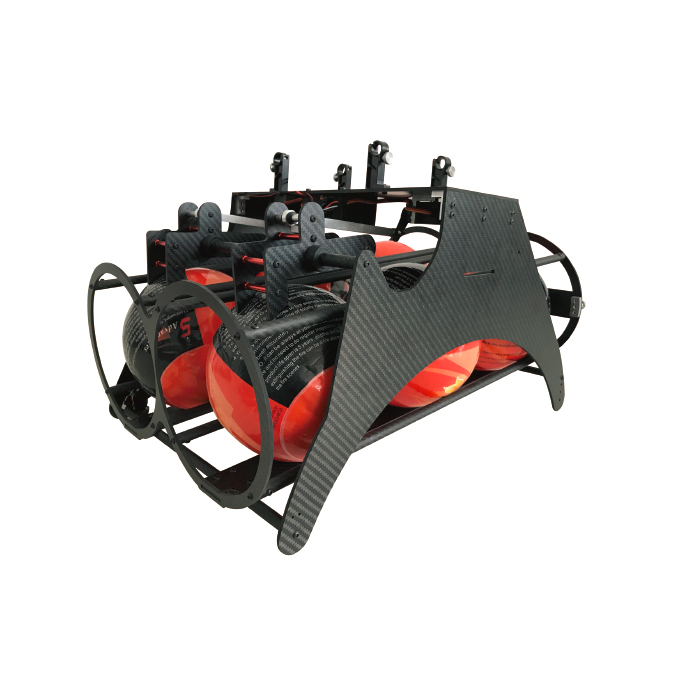

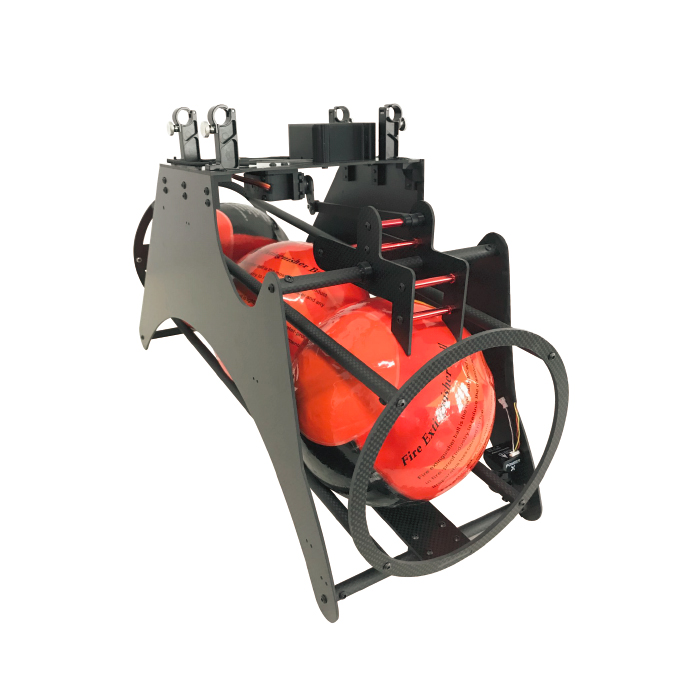

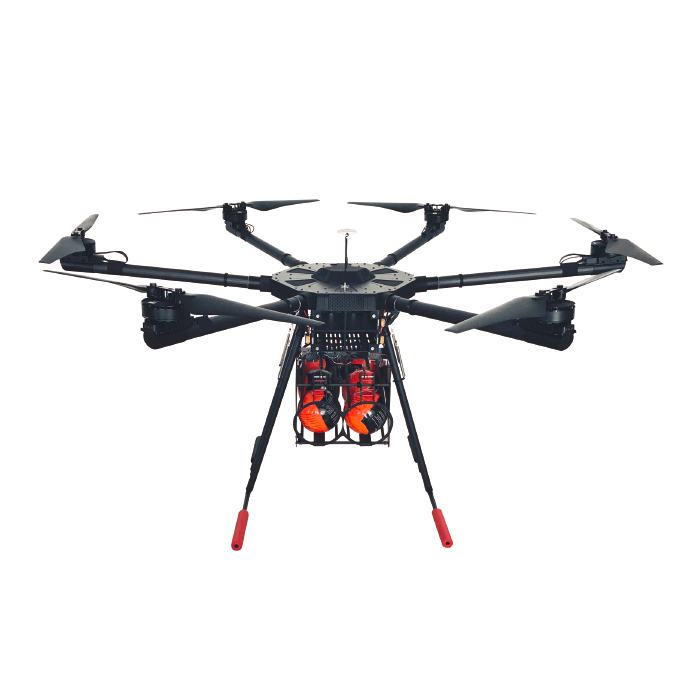

The traditional fire fighting method is sometimes restraint by some factors, like rough terrains or other unfavorable site conditions that are making it impossible for fire trucks or too dangerous for fire fighters to approach the fire scene, and as a result, people die and buildings get burnt down. Fortunately, FLY-MHD Fire Extinguisher Ball Release and Drop Device For Fire Fighting can solve that problem. It is originally designed for fire fighting, whether it’s forest fire, or ones that happen in chemical plants, a cruising large ship, or residential areas, as long as it can reach the destination, it can be put into use. Later on, derived from its former use, it is applied to more other fields like military application, medical supplies transport, emergency food delivery or it can even throw life jackets, LED lights to drowning victims on condition that the supplies that are going to be released are packed in round-shape containers. It is made of 7075 aviation aluminum alloy and carbon fiber, which gives the main body a firm supporting structure while remains light. It has two servos that enable the device to have two release mode: single and double release. Its fast reload design allows people to take an instant and effective measure in fire fighting, thus reducing casualties and property loss.

Features:

-Light and durable
-Two servos: Single/double release
-Fast reload design
-6-ball（Dual）/3 balls(Single) loading capacity

Applications:
Fire fighting: forest fire, military applications, fire control in chemical plants, large ships, or residential areas, etc.
Other fields: military application, medical supplies transport, emergency food delivery or marine delivery(packed in round-shape containers),etc.

Specifications(Dual):
Frame weight: 1.7kg(no payload)
Size: 470mm x 317mm x 291mm
Material: 7075 Aviation aluminum alloy, Carbon fiber
Power supply mode: On-board DC-DC
Working voltage: 24 V
Signal input: PWM input
Default control range: 800m(can be expanded by better RC)
Load capacity: 6*fire extinguisher balls
Suit for Ball size and weight: 150mm(1.3kg)
Release mode: Single/double release
Suggested release height: 5-50m
Response time:3-5s
Fire extinguishing range: 3 m2 / ball(just for reference)
Working Temperature: -10 ℃~ +70℃

Specifications(Single):
Frame weight: 1.2kg(no payload)
Size: 490mm x 210mm x 310mm
Material: 7075 Aviation aluminum alloy, Carbon fiber
Power supply mode: On-board DC-DC
Working voltage: 24 V
Signal input: PWM input
Default control range: 800m(can be expanded by better RC)
Load capacity: 3*fire extinguisher balls
Suit for Ball size and weight: 150mm(1.3kg)
Release mode: Single/double release
Suggested release height: 5-50m
Response time:3-5s
Fire extinguishing range: 3 m2 / ball(just for reference)
Working Temperature: -10 ℃~ +70℃

NOTE： THE PRICE IS JUST THE DROP SYSTEM, WITHOUT THE EXTINGUISHER BALL , AND THE  EXTINGUISHER BALL  NEED SPECIAL DELIVERY, SO WE SUGGEST YOU BUT THE EXTINGUISHER BALL  AT YOUR LOCAL MARKET!
