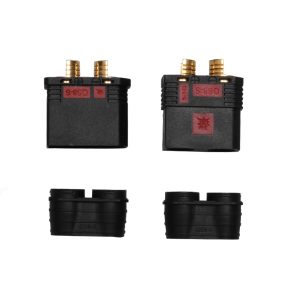

QS8-S plug for drone battery and drone building

QS8-S male and female plugs are made of copper gold-plated material, which can withstand the rated current of 120A, the peak current of 200A, the use of UL94-V0 flame retardant material, the maximum temperature of 120°, the use of error-proof design, to avoid thinking that the wrong operation caused by short circuit. suitable for Max. 4AWG cable.

Specification

Product description: QS8-S fire-proof and high-temperature resistant plant protection high-current battery plug airplane model car power supply male and female can be welded
Product Name: QS8 Male and Female Plug
Plastic material: nylon fiber
New: Anti-ignition (resistance 5.1 ohms)
Hardware material: brass gold plating
Product weight: 41 grams (errors are unavoidable)
Temperature resistance: 200°C
Wiring: 6AWG
Withstand current: 100A-120A
